MAXIMUM SAFETY
For 20 years, Apache has conquered chequered flags and climbed podiums through relentless innovation. Trusted by over 6 million riders worldwide, racing excellence has always been our foundation, and the Apache RTR 160 is the ultimate expression of it. New Dual Channel ABS and race-derived colours deliver enhanced safety and striking aesthetics, while India’s most powerful 160cc engine ensures every ride commands respect on the road.

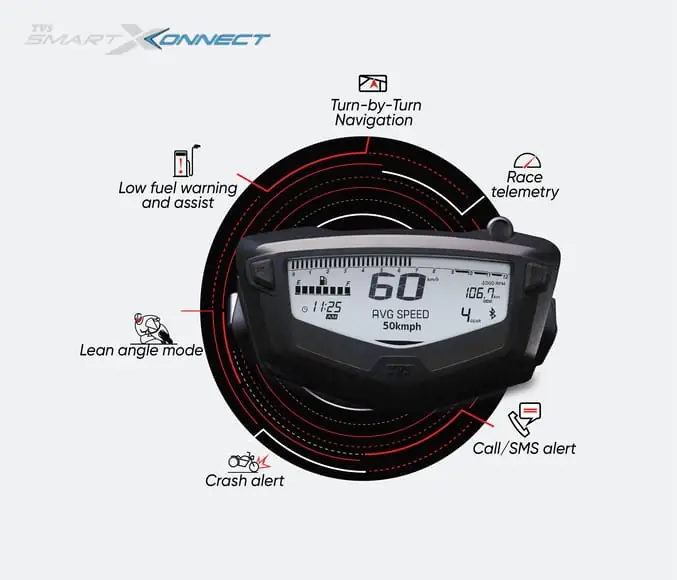

SmartXonnect
The TVS SmartXonnect app is enabled with Bluetooth connectivity and Voice assist . The navigation system displays directions on the console and the system is pre-programmed with essential stops such as fuel stations, hospitals and restaurants. The fuel warning system, senses when your fuel is low and redirects you to the nearest fuel station. The system also provides specific riding telemetry that the rider can easily analyse. It also features call and SMS alert, so that you don’t miss a thing. While the crash alert feature notifies your selected contacts in the event of a crash.
Performance
The TVS Apache RTR 160 series features three unique ride modes that enable your race machine to adapt to any condition with the press of a button. Be it the Elements or variable conditions, your race machine’s ABS and engine prime themselves to deliver optimum performance in every mode.
Style
The LED Headlamp has been designed to deliver maximum luminosity.The intimidating design of the ‘Beast Eyes’ gets a contemporary twist. The always-on LED position lamp is ready to take on the track.
Engine & Performance
| Specification | Details |
|---|---|
| Type | SI, 4-stroke, Air-cooled, SOHC, Fuel Injection |
| Engine Capacity | 159.7 cm³ |
| Maximum Power | Sport: 11.8 kW (16.04 PS) @ 8750 rpm Urban/Rain: 9.8 kW (13.32 PS) @ 8000 rpm |
| Max Speed | Sport: 107 km/h Urban/Rain: 97 km/h |
| Max Torque (Nm @ rpm) | Sport: 13.85 Nm @ 7000 rpm Urban/Rain: 12.7 Nm @ 6500 rpm |
| Fuel Supply System | Fuel Injection |
| Valve per Cylinder | 2 Valves |
| Starting | Electric start |
| Power to Weight Ratio | Base Drum: 0.0861 kW/kg Base Disc: 0.0855 kW/kg |
| Cooling System | Air cooled |
| Muffler | Conventional design |
| Gear Box | 5-speed gear box |
Chassis, Suspension & Electrical
| Specification | Details |
|---|---|
| Frame | Double Cradle Synchro STIFF |
| Battery | 12V, 6Ah MF |
| Front Suspension | Telescopic forks |
| Rear Suspension | Monotube Inverted Gas-filled Shox (MIG) with spring aid |
| Headlamp | AHO, LED Headlamp with all-time ON LED position lamp |
| Tail Lamp | LED |
Wheel, Tyre & Brake
| Specification | Details |
|---|---|
| Tyre (Front) | 90/90-17 Tubeless |
| Tyre (Rear) |
110/80-17 Tubeless 120/70-17 Tubeless (Disc BT) |
| ABS |
Dual Channel ABS (Top) Single Channel Super-Moto ABS |
| Brake Fluid | DOT 3 / DOT 4 |
| Front Brake | 270mm dia Petal Disc |
| Rear Brake |
Disc – 240mm dia Petal Disc (Top) Disc – 200mm dia Petal Disc Drum – 130mm dia Drum |
Dimensions, Weight & Fuel Tank Capacity
| Specification | Details |
|---|---|
| Fuel Supply System | Fuel Injection: Bosch – Closed loop |
| Fuel Tank Capacity | 12 L |
| Ground Clearance | 180 mm |
| Height | 1105 mm |
| Length | 2085 mm |
| Width | 730 mm |
| Kerb Weight | Top variant: 139 kg Disc version: 138 kg Drum version: 137 kg |
| Saddle Height | 790 mm |
| Wheelbase | 1300 mm |
